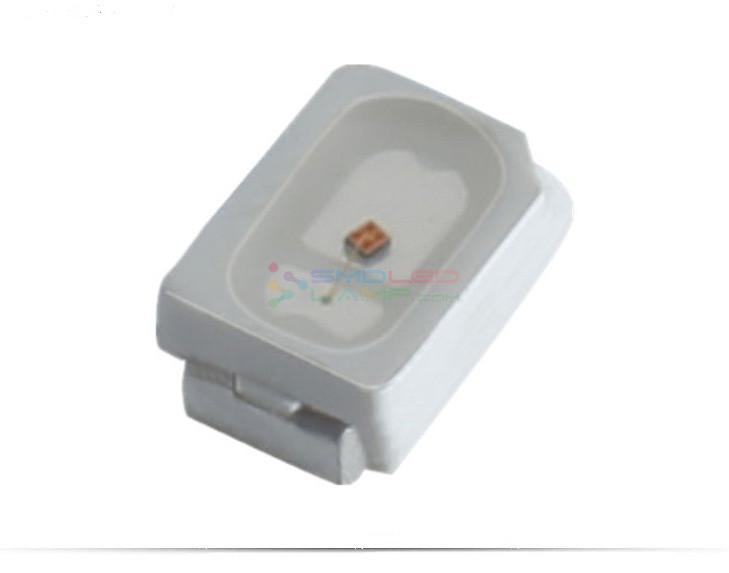

20 MA Current Led Chip Light 620 Nm / 640 Nm / 660 Nm Low Consumption

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3020R
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description



Type:smd led Chip Material:InGaN
Emitting Color:Red Luminous Intensity:Customers' Requirements
Luminous Flux(lm):400-500MCD Power:0.06W
Viewing Angle(°):120 Degree Color Rendering Index:Null
Color Temperature:620-625nm Operating Temperature:-20 - 85
Chip Brand:Epistar Chip, Sanan Chip,Epileds Chip Current:20mA
Voltage:2.0-2.4V Warranty:2 Years
Lifespan:50000-100000H

0.06W SMD 3020 Red LED Smd Components Epistar 620nm 640nm 660nm Led Chip Lighting



Features:

  1. PLCC-2 package.

  2. White package.

  3. Optical indicator.

  4. Colorless clear window.

  5. Ideal for backlight and light pipe application.

  6. Inter reflector.

  7. Wide viewing angle.

  8. Suitable for automatic placement equipment.

  9. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.

  10. Available on tape and reel (8mm Tape).

  11. The product itself will remain within RoHS compliant Version.



Descriptions:

  1. The YH3020R series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



Applications:

  1. Automotive: Backlighting in dashboards and switches.

  2. Telecommunication: Indicator and backlight in telephone and fax

  3. Indicator and backlight for audio and video equipment.

  4. Indicator and backlight in office and family equipment.

  5. Flat backlight for LCD’s, switches and symbols.

  6. Light pipe application.

  7. General use.

Part No. Chip Material Lens Color Source Color
YH3020R AlGaInP Water Clear Red













20 MA Current Led Chip Light 620 Nm / 640 Nm / 660 Nm Low Consumption

Package Dimensions

                           20 MA Current Led Chip Light 620 Nm / 640 Nm / 660 Nm Low Consumption

Recommended Soldering Patter

                                               20 MA Current Led Chip Light 620 Nm / 640 Nm / 660 Nm Low Consumption



SURFACE MOUNT LED LAMPS
Product Type:YH3020R
Absolute maximum ratings (Ta=25°C)
Parameter
Symbol
Value Unit
Forward current
If
20 mA
Reverse voltage Vr 5 V
Power dissipation Pd 0.06 W
Operating temperature range Top -25~+80 °C
Storage temperature range Tstg -30~+85 °C

Peak pulsing current

(1/8 duty f=1KHz)

Ifp 40 mA
Electro-Optical characteristics (TA=25°C)
Parameter

Test

Condition



Symbol

Value Unit
Min Typ Max
Color Temperature -- CCT -- -- - K
Forward voltage If=20mA Vf 2.0 -- 2.4 V
luminous flux
If=20mA
φ 400 -- 500 MCD



Viewing angle at 50% IV

If=20mA 1/2 -- 120 -- Deg



Dominant wavelength

If=20mA
λd 620 -- 630 nm
Reverse current Vr=5V Ir -- 5 -- μA

Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.

  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

  3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.



Please read the following notes before using the product:

  1. Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

  1. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.

  1. Soldering Condition

3.1 Pb-free solder temperature profile.

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

  1. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

  1. Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.



  1. Caution in ESD

Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.



Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
