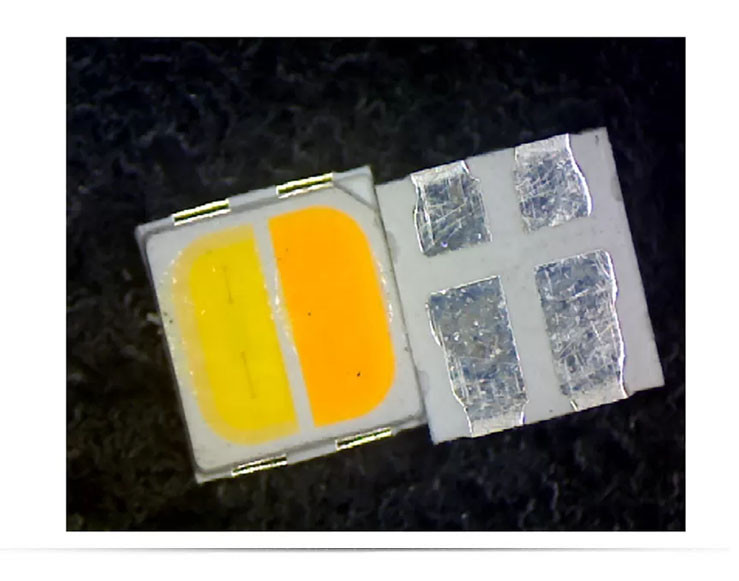

1 Watt White / Warm White 3030 SMD LED PLCC4 Bi Emitting Color 2 Years Warranty

1 Watt White / Warm White 3030 SMD LED PLCC4 Bi Emitting Color 2 Years Warranty

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3030BICOLOR
Payment & Shipping Terms:
Minimum Order Quantity: 8K
Price: Please inquiry
Packaging Details: 5000pcs/Reel our product package size is 25x23CM, and is the use of aluminum vacuum packaging. And different types of containers, small cartons can be installed about 100K products. Large box can hold about 500K.
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Emitting Color:	White/warm White	Luminous Flux(lm):	W/WW:50-60LM
Power:	A Total Power 1W	Color Rendering Index:	80
Color Temperature:	W:6000-6500K/WW:2800-3200K	Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip
Current:	Single Color 20mA	Voltage:	3.0-3.4V
Warranty:	2 Years	Lifespan:	50000-100000H

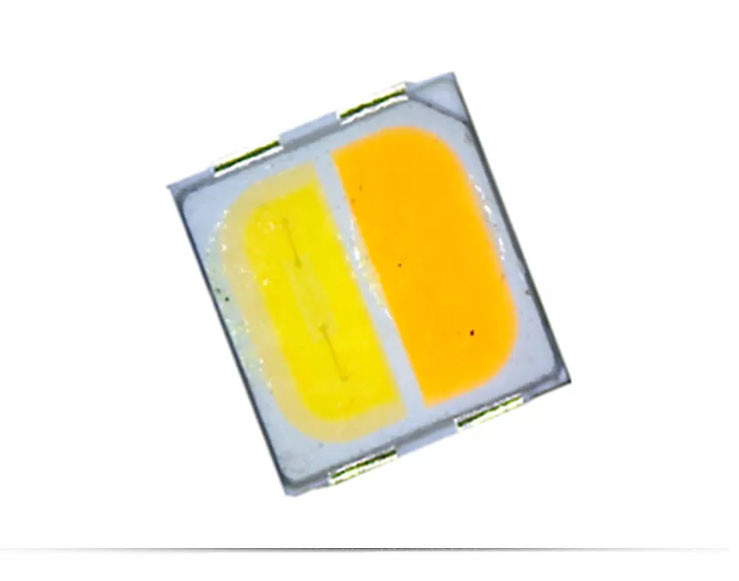

1 Watt White / Warm White 3030 smd led PLCC4 Bi Emitting Color 2 Years Warranty

Features:
Reading lights (car, bus, aircraft).
Mini_ accent/Up lighters/Down lighters/Orientation.
Bollards/Security/Garden.
Cove/Under shelf/Task.
Automotive rear combination lamps.
Indoor/Outdoor Commercial and Residential Architectural.
Edge_ lit signs (Exit, point of sale).
LCD Backlights/Light Guides.
Designed for high current operation.
Low thermal resistance.
Suitable for automatic placement equipment.
Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
The product itself will remain within RoHS compliant Version.

Product features:

1.High lumen: 8-10lm
2.Low Brightness Decay
3.Stable Performance & Great CCT Inity.
4Color Range:warm white, natural white, cool white,RGB.

Product quality:

1.good raw materials
2. Copper layer
3. Gold wire connection

4.Sanan chips
5. Lifespan is >50 000 hours easily

SURFACE MOUNT LED LAMPS
Product Type:YH3528BICOLOR
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value		Unit
Forward current			If			150		mA
Reverse voltage			Vr			5		V
Power dissipation			Pd			0.2		W
Operating temperature range			Top			-25~+80		°C
Storage temperature range			Tstg			-30~+85		°C
Peak pulsing current (1/8 duty f=1KHz)			Ifp			200		mA
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Value					Unit
				Min	Typ		Max
Color Temperature	If=150mA	CCT		6000 2800	---		6500 3200		K
Forward voltage	If=150mA	Vf		3	--		3.4		V
luminous flux	If=150mA	φ		50	--		55		LM
Viewing angle at 50% IV	If=20mA	2θ1/2		--	120		--		Deg
Color rendering index	If=150mA	CRI		--	80		--		Ra
Reverse current	Vr=5V	Ir		--	5		--		μA

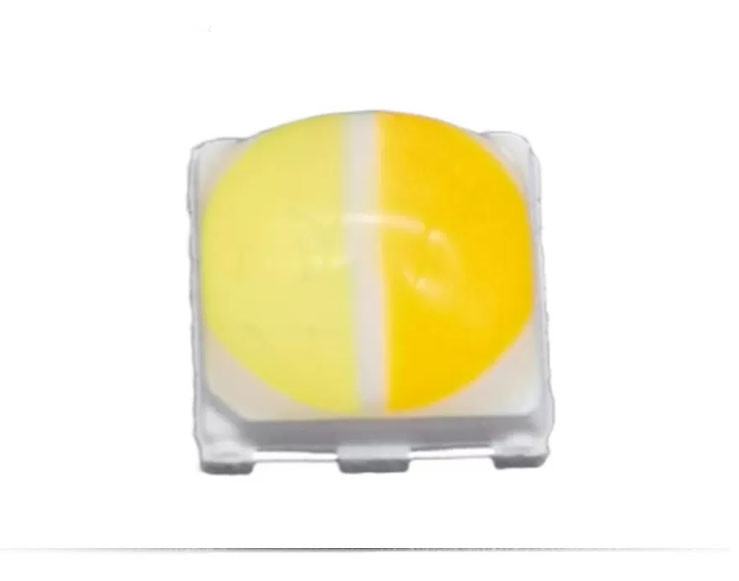

1 Watt White / Warm White 3030 SMD LED PLCC4 Bi Emitting Color 2 Years Warranty

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.

Product Description

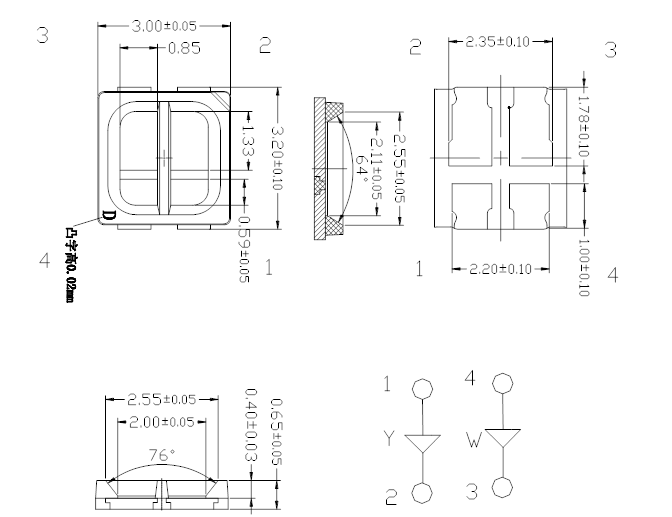

1 Watt White / Warm White 3030 SMD LED PLCC4 Bi Emitting Color 2 Years Warranty

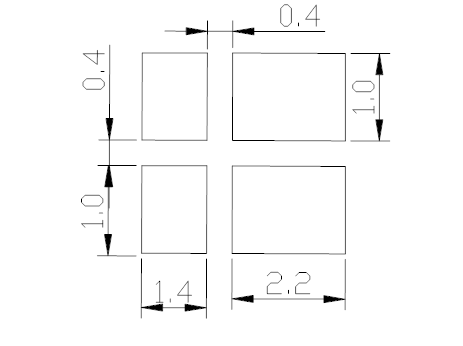

Recommended Soldering Patter

1 Watt White / Warm White 3030 SMD LED PLCC4 Bi Emitting Color 2 Years Warranty

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .free samples will be available.

Q2: What’s the delivery time?

A: It usually takes about 5-7 days to produce an order. But the exact delivery time might be different for different orders or at different time.

Q3: What's your warranty terms?

A: The warranty for all our Led products is 2 years.

Q4: How does your factory do regarding quality control?

A: Quality is priority.We always believe Quality is our marketing and attach great importance to quality control from the very beginning to the end of the production.

Every product will be fully assembled and carefully tested before it's packed for shipment.
