White Shell High Power Chip Rgb Led 120 Degree Viewing Angle Easy Installation

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3528RGBCA
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description



Type:smd ledChip Material:InGaN
Emitting Color:RGB CALuminous Intensity:Customers' Requirements
Luminous Flux(lm):High BrightnessPower:0.2 W
Viewing Angle(°):120 DegreeColor Rendering Index:Null
Color Temperature:R:620NM G:520NM B:460NMOperating Temperature:-20 - 85
Chip Brand:Epistar Chip, Sanan Chip,Epileds ChipCurrent:60mA
Voltage:R:2.0-2.4V G/B:3.0-3.4VWarranty:2 Years
Lifespan:50000-100000H

 Common anode 3528 Rgb SMD Led 1.90mm Height in white shell Top View Full Color Chip LEDs

  • PLCC-4 package.

  • common anode package.

  • Optical indicator.

  • Colorless clear window.

  • Ideal for backlight and light pipe application.

  • Inter reflector.

  • Low current (20mA) operation.

  • Wide viewing angle.

  • Suitable for automatic placement equipment.

  • Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.

  • The product itself will remain within RoHS compliant Version.


  •


  • Descriptions:

  • The 3528 common aonde RGB is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.


  •


  • Applications:

  • Automotive: Backlight in dashboards and switches.

  • Telecommunication: Indicator and backlight in telephone and fax.

  • Indicator and backlight for audio and video equipment.

  • Indicator and backlight in office and family equipment.

  • Flat backlight for LCD’s, switches and symbols.

  • Light pipe application.

  • General use.


  •



  • Product Description



    White Shell High Power Chip Rgb Led 120 Degree Viewing Angle Easy Installation

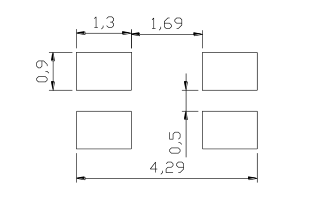

    Recommended Soldering Patter


                                   White Shell High Power Chip Rgb Led 120 Degree Viewing Angle Easy Installation



Our advantages

https://www.smdledchip.com/photo/smdledchip/editor/20190228000519_27631.png

White Shell High Power Chip Rgb Led 120 Degree Viewing Angle Easy Installation



SURFACE MOUNT LED LAMPS
Product Type:YH3528RGBCA
Absolute maximum ratings (Ta=25°C)
Parameter
Symbol
ValueUnit
Forward current
If
60mA
Reverse voltageVr5V
Power dissipationPd0.16W
Operating temperature rangeTop-25~+80°C
Storage temperature rangeTstg-30~+85°C
Peak pulsing current(1/8 duty f=1KHz)Ifp80mA
Junction TemperatureTj115℃/W
Electrostatic Discharge(HBM)ESD1000V
Electro-Optical characteristics (TA=25°C)



Parameter

Test

Condition



Symbol



Color

ValueUnit
MinTypMax



Color Temperature

IF=20mACCT

R

G

B

------K



Forward voltage

IF=20mAVf

R

G

B

2.0

3.0

3.0

--

2.4

3.4

3.4

V



luminous flux

IF=20mAφ

R

G

B

2

5

1

--

3

8

1.5

LM



Viewing angle at 50% IV

IF=20mA2θ1/2

R

G

B

--120--Deg



Dominant wavelength

IF=20mAλd

R

G

B

620

520

465

--

630

525

470

nm

Reverse current

Vr=5VIr

R

G

B

--5--μA

Color Rendering Index

IF=20mACRI--------Ra



                          White Shell High Power Chip Rgb Led 120 Degree Viewing Angle Easy Installation

Reel Dimensions:
                                        0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K


Carrier Tape Dimensions:
Loaded quantity 2000 PCS Per reel.

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
