High Bright SMD 5050 LED Chips Phosphor Mix Yellow Lighting Emitting Diode

Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH5050MY02
Minimum Order Quantity: 10K
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:smd ledChip Material:InGaN
Emitting Color:Mix YellowLuminous Intensity:Customers' Requirements
Luminous Flux(lm):15-18LMPower:0.2W
Viewing Angle(°):120 DegreeColor Rendering Index:40
Color Temperature:1600-1800KOperating Temperature:-20 - 85
Chip Brand:Epistar Chip, Sanan Chip,Epileds ChipCurrent:60mA
Voltage:3.0-3.4VWarranty:2 Years
Lifespan:50000-100000H


CE ROHS high bright smd 5050 led 0.2 watts Epistar chips Phosphor mix Yellow lighting emitting diode free samples



l Emitting Color:Mix Yellow

l Lens Type:Mix Phosphor

l Device Outline:5.0×5.0×1.6 (unit:mm)

lRoHS compliant




Features:

  1. 5.0*5.0*1.6mm size

  2. Emitting color:Green, but Red, blue, Amber, yellow, purple, pink, Warm white and white are available.

  3. Package: 1000 pieces a reel

  4. Len color: Mix Phosphor

  5. Luminous Intensity: 16-18LM

  6. Kelvin:1600-1800K

  7. Current: 60mA

  8. Voltage: 3.0-3.4V

  9. Package in 8mm tape on 7" diameter reel.

  10. Compatible with automatic placement equipment.

  11. Compatible with infrared and vapor phase reflow solder process.

  12. Mono-color type.

  13. The product itself will remain within RoHS compliant Version.




Descriptions:

  1. The YH55050MY02 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

  2. Besides, lightweight makes them ideal for miniature applications, etc.


Applications:



  1. Automotive: Backlighting in dashboard and switch.

  2. Telecommunication: Indicator and backlighting in telephone, sound and fax.

  3. Flat backlight for LCD, switch and symbol.

  4. General use.

               High Bright SMD 5050 LED Chips Phosphor Mix Yellow Lighting Emitting Diode





Package Dimension:

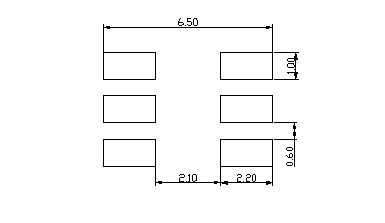

Recommended Soldering Patter

                                                 High Bright SMD 5050 LED Chips Phosphor Mix Yellow Lighting Emitting Diode



SURFACE MOUNT LED LAMPS
Product Type:YH5050MY02
Absolute maximum ratings (Ta=25°C)
Parameter
Symbol
ValueUnit
Forward current
If
60mA
Reverse voltageVr5V
Power dissipationPd200mW
Operating temperature rangeTop-25~+80°C
Storage temperature rangeTstg-30~+85°C
Peak pulsing current(1/8 duty f=1KHz)Ifp100mA
Junction TemperatureTj115℃/W
Electrostatic Discharge(HBM)ESD1000V
Electro-Optical characteristics (TA=25°C)



Parameter

Test

Condition



Symbol



Color

ValueUnit
MinTypMax



Color Temperature

IF=60mACCTMY1600--1800K



Forward voltage

IF=60mAVfMY3.0--3.4V



luminous flux

IF=60mAφMY15--18LM



Viewing angle at 50% IV

IF=60mA2θ1/2MY--120--Deg



Dominant wavelength

IF=60mAλd--------nm



Reverse current

Vr=5VIrMY--5--μA



Color Rendering Index

IF=60mACRI----40--Ra
