Royal Blue Plant Light 0.2w Smd Led Chip SMD 2016 LED 440 Nm 450 Nm 460 Nm

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH2016B02
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Royal Blue	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	3-5LM	Power:	0.2W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	450-460nm	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	60mA
Voltage:	3.0-3.3V	Warranty:	2 Years
Lifespan:	50000-100000H

High quality SMD 2016 LED Royal blue plant light 0.2w 440nm 450nm 460nm for aquarium light

l Emitting Color:Royal Blue

l Lens Type:smd led

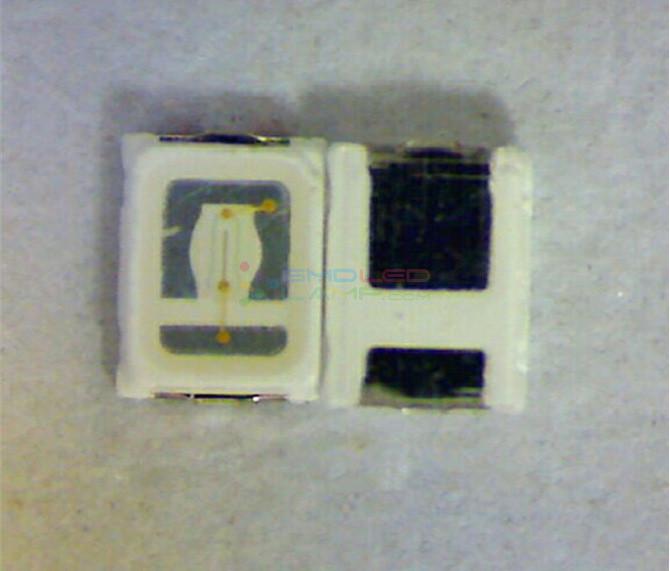

l Device Outline:2.0*1.6*0.6 (unit:mm)

lRoHS compliant

Royal Blue Plant Light 0.2w Smd Led Chip SMD 2016 LED 440 Nm 450 Nm 460 Nm

Features:

Emitting color:Green, but Red, blue, Amber, yellow, purple, pink, Warm white and white are available.
Package: 4000 pieces a reel
Luminous Intensity: 3-5LM
Wavelength:450-470nm
Current: 60mA
Voltage: 3.0-3.3V
Package in 8mm tape on 7" diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
Mono-color type.
The product itself will remain within RoHS compliant Version.

Descriptions:

The YH2016B02 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for miniature applications, etc.

Applications:

Automotive: Backlighting in dashboard and switch.
Telecommunication: Indicator and backlighting in telephone, sound and fax.
Flat backlight for LCD, switch and symbol.
General use.

Product Description

Royal Blue Plant Light 0.2w Smd Led Chip SMD 2016 LED 440 Nm 450 Nm 460 Nm

SURFACE MOUNT LED LAMPS
Product Type:YH2016B02
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			60			mA
Reverse voltage			Vr			5			V
Power dissipation			Pd			0.2			W
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			80			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	IF=60mA	CCT		B	--		--	--		K
Forward voltage	IF=60mA	Vf		B	3.0		--	3.4		V
luminous flux	IF=60mA	φ		B	3		--	5		LM
Viewing angle at 50% IV	IF=60mA	2θ1/2		B	--		120	--		Deg
Dominant wavelength	IF=60mA	λd		--	450		--	470		nm
Reverse current	Vr=5V	Ir		B	--		5	--		μA
Color Rendering Index	IF=60mA	CRI		--	--		--	--		Ra

Customize various colors smd 5630 led chip 0.5w add Phosphor Amber Orange 600nm 605nm 610nm datasheet

We provide EMS DHL UPS FedEx TNT that several different types of express allows you to select, under normal circumstances, the transport time is in 5 to 10 days or so, if large cargo, go shipping, so time is longer, but safer, and the freight is lower.

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
