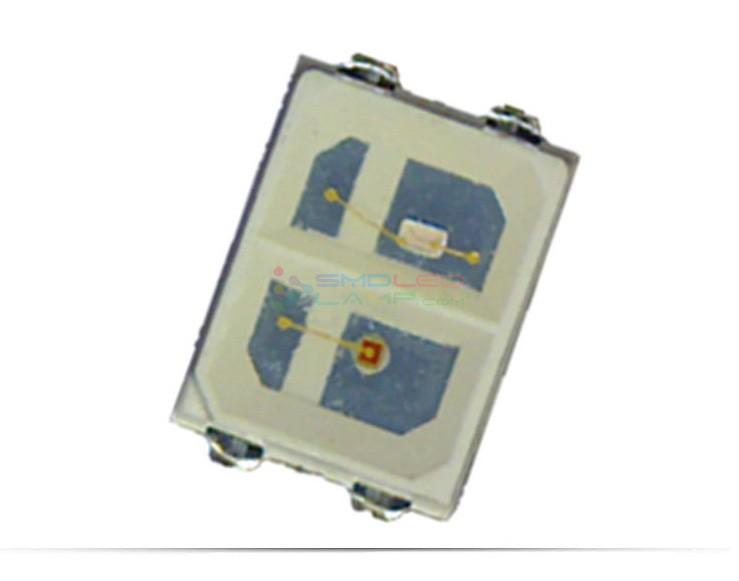

Bi Color SMD 2835 LED Chip Dual Chips Pin Polarity 120 Degree Viewing Angle

Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH2835BICOLORRB04
Minimum Order Quantity: 12K
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Red+Blue	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	R:5-8LM/B:3-5LM	Power:	0.4 Watt
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	R:620-625NM/B:460-465NM	Operating Temperature:	-20 - 85°C
Chip Brand:	Epistar Chip , Sanan Chip , Epileds Chip	Current:	120mA
Voltage:	R:2.0-2.4V/B:3.0-3.4V	Warranty:	2 Years
Lifespan:	50000-100000H

Dual Chips Pin polarity the same 625nm 460nm PLCC4 Red-Blue Chip 2835 Bi-Color SMD LED

Features:
The LED are available with different color
Utilizing advanved technology
High brightness,long life
Advantages:
High-intensity
uniform illumination
,Energy-saving and environmental protection
Low-power consumption
Well consistency
Bins sorting
Full-inspection before dispatch
CE & RoHS Certification

SURFACE MOUNT LED LAMPS
Product Type:YHRB2835-0.4W
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			120			mA
Reverse voltage			Vr			5			V
Power dissipation			Pd			340			mW
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			156			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	I_F=60mA	CCT		--	--		--	--		K
Forward voltage	I_F=60mA	Vf		B R	3.0 2.0		--	3.4 2.4		V
luminous flux	I_F=60mA	φ		B R	3 6		--	5 8		LM
Viewing angle at 50% IV	I_F=60mA	2θ1/2		B R	--		120	--		Deg
Dominant wavelength	I_F=60mA	λd		B R	455 620		--	465 630		nm
Reverse current	Vr=5V	Ir		B R	--		5	--		μA
Color Rendering Index	I_F=60mA	CRI		--	--		--	--		Ra
