5074 6 Pin Rgb Led , Epileds Epistar Led Chip 120 Degree Viewing Angle

Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH5074RGB3W
Minimum Order Quantity: 3.2K
Price: Please inquiry
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:smd ledChip Material:InGaN
Emitting Color:R-G-BLuminous Intensity:Customers' Requirements
Luminous Flux(lm):High LumensPower:3W
Viewing Angle(°):120 DegreeColor Rendering Index:NULL
Color Temperature:R:620-625NM/G:520-525NM/B:460-462NMOperating Temperature:-20 - 85
Chip Brand:Epistar Chip, Sanan Chip,Epileds ChipCurrent:350mA
Voltage:R:2.0-2.4V G/B:3.0-3.6VWarranty:2 Years
Lifespan:50000-100000H

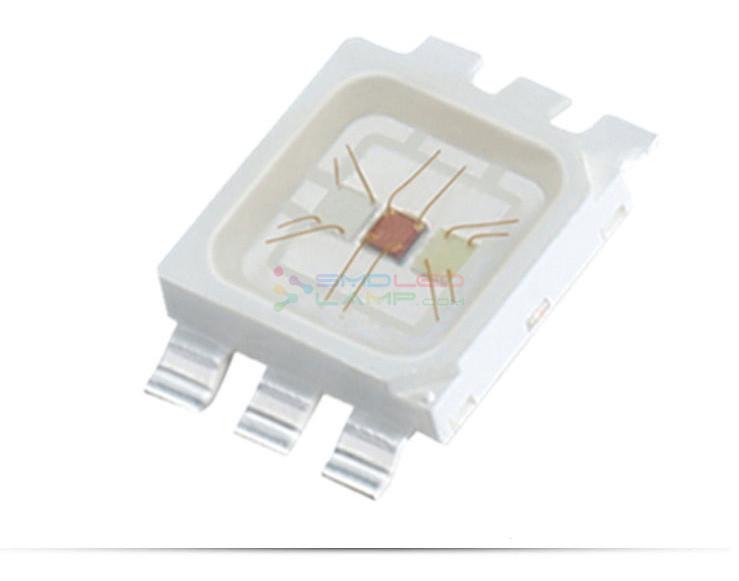

Epileds epistar chip led 3w high power 5074 smd led 6pin RGB for led par light



Features:

  • Very long operating life (up to100k hours).

  • Three chips (color) in one package.

  • Independent control of each color.

  • More energy efficient than incandescent and most halogen lamps.

  • Low voltage operated.

  • Instant light.

  • Long operating life.

  • IR reflow process compatible.

  • The product itself will remain within RoHS compliant Version.



Descriptions:

  • YH5074RGB3W is one of the highest flux LEDs in the world. It is designed to satisfy applications of Solid-State lighting. It is designed to have three chips in one package. It has various colors for choice and can be independently controlled. More important, it can be pass reflow process.

  • Packaging Details: 800pcs/Reel  our product package size is 25x23CM, and is the use of aluminum vacuum packaging. And different types of containers, small cartons can be installed about 100K products. Large box can hold about 500K.


Applications:

  • Automotive: Backlight in dashboards and switches.

  • Telecommunication: Indicator and backlight in telephone and fax.

  • Indicator and backlight for audio and video equipment.

  • Indicator and backlight in office and family equipment.

  • Flat backlight for LCD’s, switches and symbols.

  • Light pipe application.

  • General use.



Part No.Chip MaterialSource Color
YH5074RGB3WRAlGaInPUltra Red
GInGaNPure Green
BInGaNBlue





















Package Dimensions



5074 6 Pin Rgb Led , Epileds Epistar Led Chip 120 Degree Viewing Angle



Recommended Soldering Patter



5074 6 Pin Rgb Led , Epileds Epistar Led Chip 120 Degree Viewing Angle




SURFACE MOUNT LED LAMPS
Product Type:YH5074RGB3W
Absolute maximum ratings (Ta=25°C)
ParameterSymbolValueUnit
Forward currentIf300mA
Reverse voltageVr5V
Power dissipationPd3W
Operating temperature rangeTop-25~+80°C
Storage temperature rangeTstg-30~+85°C
Peak pulsing current(1/8 duty f=1KHz)Ifp350mA
Junction TemperatureTj115℃/W
Electrostatic Discharge(HBM)ESD1000V
Electro-Optical characteristics (TA=25°C)



Parameter

Test

Condition



Symbol



Color

ValueUnit




MinTypMax



Color Temperature

IF=300mACCT

R

G

B

------K



Forward voltage

IF=300mAVf

R

G

B

2.0

3.0

3.0

--

2.4

3.6

3.6

V



luminous flux

IF=300mAφ

R

G

B

30

60

20

--

40

80

30

LM



Viewing angle at 50% IV

IF=300mA2θ1/2

R

G

B

--120--Deg



Dominant wavelength

IF=300mAλd

R

G

B

620

520

460

--

625

525

465

nm



Reverse current

Vr=5VIr

R

G

B

--5--μA



Color Rendering Index

IF=300mACRI--------Ra
