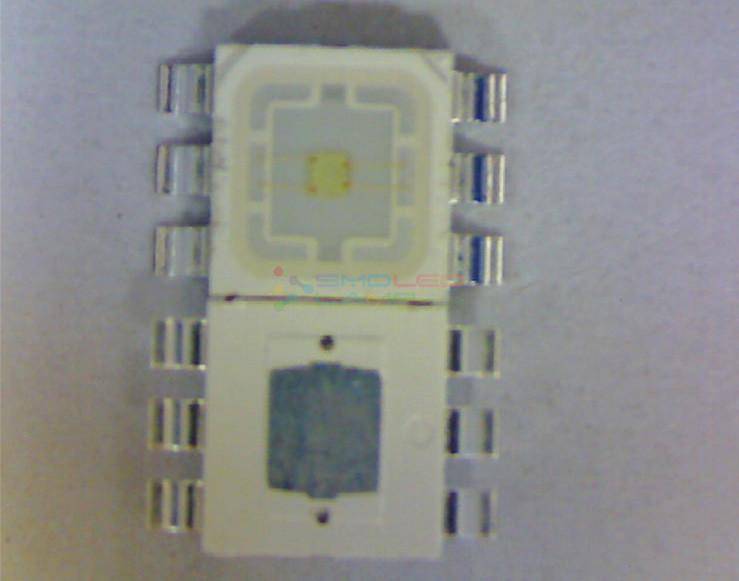

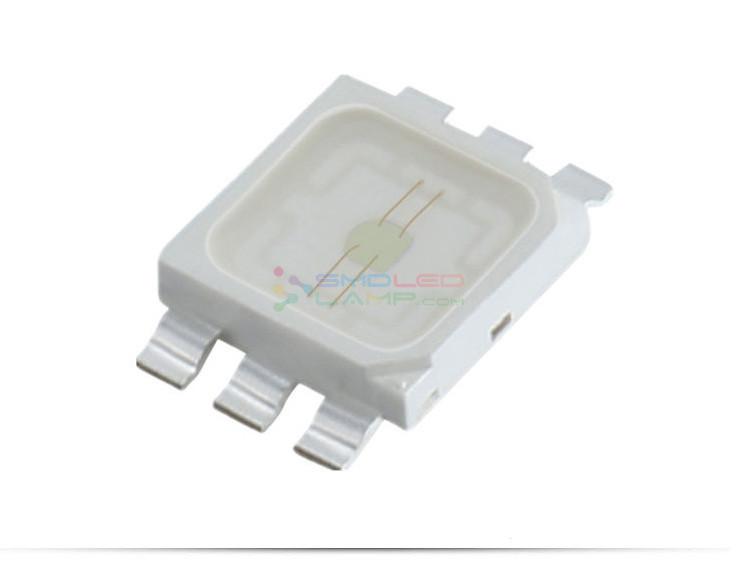

Smd 5074 Led High Intensity Led Green , 515 - 525 NM Led Lamp Spare Parts

Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH5074G3W
Minimum Order Quantity: 3.2K
Price: Please inquiry
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Green	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	120-140LM	Power:	3W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	515-525NM	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	700mA
Voltage:	3.0-3.6V	Warranty:	2 Years
Lifespan:	50000-100000H

1-3W smd 5074 led Green 515-525NM high power led beads datasheet for landscape light

Features:

Emitted Colour: Green

Chip: Epistar/Epileds/Bridgelux/Huga/Genesis photonics/Cree

Chips number:1

Other colours: red,yellow,blue,green,pure white,warm white and cool white,purple,bi-colour,rgb,etc.

Low power consumption, high intensity, uniform illumination

Aailable power: 0.5w, 1w, 2w, 3w, 5w,10w, 20w, 30w, 50w, 60w, 70w, 80w,90w, 100w, 150w, 200w, 300w, 500w.

Solid-state, high shock and vibration resistant

Major reduction in power cost

No RF interference

Maintenance free, easy installation

Long life 50,000+hours

Superior ESD protection

Packaging Details: 800pcs/Reel our product package size is 25x23CM, and is the use of aluminum vacuum packaging. And different types of containers, small cartons can be installed about 100K products. Large box can hold about 500K.

Absolute Maximum Rating

Item	Symbol	Absolute Maximum Rating	Unit
Forward Current	IF	700	mA
Peak Forward Current	IFP	1000	mA
ReverseVoltage	VR	5	V
Electrostatic discharge	ESD	2000	V
Operation Temperature	TOPR	-35~+85	℃
Storage Temperature	TSTG	-40~+90	℃
Lead Soldering Temperature	TSOL	Reflow Soldering: 220℃ for 5 sec Hand Soldering: 300℃ for 3 sec

*Ifp Conditions: Pulse Wide≤10msec≤1/10

*Tsol Conditions:3mm from the base of epoxy bulb

Typical Optical/Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max		Unit
Forward Voltage	VF	IF=700mA	3.0	3.2		3.4	V
Luminous Flux	Φ	IF=700mA	120	130		140	lm
Wavelength	WD	IF=700mA	515	520		525	nm
Reverse current	IR	IF=700mA	0		5		uA
Viewing Angle	2θ1/2	IF=700mA	60		120		deg
Recommend Forward Current	IF(rec)	IF=700mA			700		mA

Notes:

1. Work absolute ratings Ta=25℃

2.Tolerance of measurement of forward voltage±0.1V

Descriptions:

Applications:

Package Dimensions

Recommended Soldering Patter

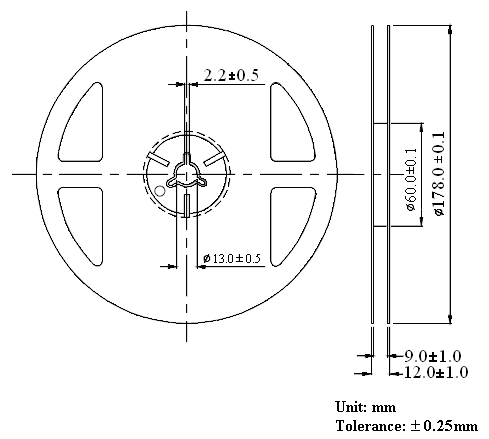

Reel Dimensions:

Carrier Tape Dimensions:
Loaded quantity 1000 PCS Per reel.

Smd 5074 Led High Intensity Led Green , 515 - 525 NM Led Lamp Spare Parts

We provide EMS DHL UPS FedEx TNT that several different types of express allows you to select, under normal circumstances, the transport time is in 5 to 10 days or so, if large cargo, go shipping, so time is longer, but safer, and the freight is lower.

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
