95Ra Color Rendering Index High Cri Led Chip , 5730 Led Smd ROHS Approved

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YHHCRI5730W05
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	White	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	45-50LM	Power:	0.5W
Viewing Angle(°):	120 Degree	Color Rendering Index:	95Ra
Color Temperature:	6000-6500K	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	150mA
Voltage:	3.0-3.6V	Warranty:	2 Years
Lifespan:	50000-100000H

High cri led 5730 smd 95Ra 6000k white 0.5W CRI>95 for festival light

PLCC-2 package.
High power LED type.
White package.
Optical indicator.
Colorless clear window.
Inter reflector.
Wide viewing angle.
Very long operating life.
Instant light (less than 100 ns).
Cove/Under shelf/Task.
Designed for high current operation.
Low thermal resistance.
Suitable for automatic placement equipment.
Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
The product itself will remain within RoHS compliant Version.

Descriptions:

The 5730 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Applications:

Automotive: Backlighting in dashboards and switches.
Telecommunication: Indicator and backlight in telephone and fax
Indicator and backlight for audio and video equipment.
Indicator and backlight in office and family equipment.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General use.

Package Dimensions

95Ra Color Rendering Index High Cri Led Chip , 5730 Led Smd ROHS Approved

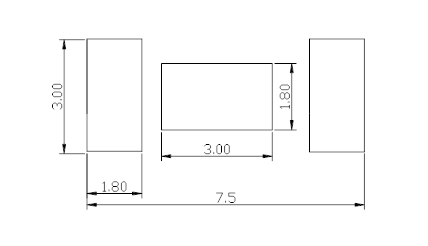

Recommended Soldering Patter

5730 smd led Perfect Product Package—We Care about Your Goods and You

Product Type:YHHCRI5730W05
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value		Unit
Forward current			If			150		mA
Reverse voltage			Vr			5		V
Power dissipation			Pd			0.5		W
Operating temperature range			Top			-25~+80		°C
Storage temperature range			Tstg			-30~+85		°C
Peak pulsing current (1/8 duty f=1KHz)			Ifp			200		mA
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Value					Unit
				Min	Typ		Max
Color Temperature	If=150mA	CCT		6000	--		6500		K
Forward voltage	If=150mA	Vf		3.0	--		3.4		V
luminous flux	If=150mA	φ		45	--		50		Lm
Viewing angle at 50% IV	If=150mA	2θ1/2		--	120		--		Deg
Dominant wavelength	If=150mA	λd		450	--		455		nm
Reverse current	Vr=5V	Ir		--	5		--		μA

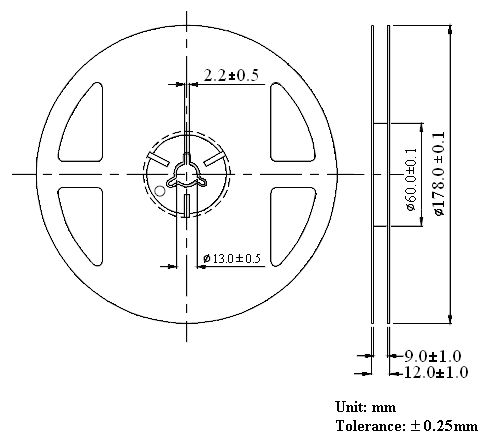

Reel Dimensions:

Carrier Tape Dimensions:
Loaded quantity 3000 PCS Per reel.

95Ra Color Rendering Index High Cri Led Chip , 5730 Led Smd ROHS Approved

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
