60 MA SMD UV LED Chip 40 - 60 MCD Luminous Flux 5050 UV LED CE Approved

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH5050UVP02
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description



Type:smd led Chip Material:InGaN
Emitting Color:Ultraviolet Purple Luminous Intensity:Customers' Requirements
Luminous Flux(lm):40-60MCD Power:0.2W
Viewing Angle(°):120 Degree Color Rendering Index:Null
Color Temperature:400-410nm Operating Temperature:-20 - 85
Chip Brand:Epistar Chip, Sanan Chip,Epileds Chip Current:60 MA
Voltage:3.2-3.6V Warranty:2 Years
Lifespan:50000-100000H

Ultraviolet purple color SMD 5050 0.2w 400-410nm SMD UV LED Chip for Money detector , mosquito lamp



  • Features:

  • PLCC-6 package.

  • White package.

  • Optical indicator.

  • Colorless clear window.

  • Ideal for backlight and light pipe application.

  • Inter reflector.

  • Low current (2mA) operation.

  • Wide viewing angle.

  • Suitable for vapor-phase reflow, infrared reflow and wave solder processes.

  • Computable with automatic placement equipment.

  • Available on tape and reel (12mm Tape).

  • The product itself will remain within RoHS compliant Version.



    • Descriptions:

    • The 0.2W 5050 is available in soft red, orange, yellow, green, blue and white. Due to the Package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium



    Product Description

    60 MA SMD UV LED Chip 40 - 60 MCD Luminous Flux 5050 UV LED CE Approved



    SURFACE MOUNT LED LAMPS
    Product Type:YH5050B02
    Absolute maximum ratings (Ta=25°C)
    Parameter
    Symbol
    Value Unit
    Forward current
    If
    60 mA
    Reverse voltage Vr 5 V
    Power dissipation Pd 200 mW
    Operating temperature range Top -25~+80 °C
    Storage temperature range Tstg -30~+85 °C
    Peak pulsing current(1/8 duty f=1KHz) Ifp 100 mA
    Junction Temperature Tj 115 ℃/W
    Electrostatic Discharge(HBM) ESD 1000 V
    Electro-Optical characteristics (TA=25°C)



    Parameter

    Test

    Condition



    Symbol



    Color

    Value Unit
    Min Typ Max



    Color Temperature

    IF=60mA CCT P -- -- -- K



    Forward voltage

    IF=60mA Vf P 3.0 -- 3.6 V



    luminous flux

    IF=60mA φ P 40 -- 60 MW



    Viewing angle at 50% IV

    IF=60mA 2θ1/2 P -- 120 -- Deg



    Dominant wavelength

    IF=60mA λd -- 400 -- 410 nm



    Reverse current

    Vr=5V Ir P -- 5 -- μA



    Color Rendering Index

    IF=60mA CRI -- -- -- -- Ra

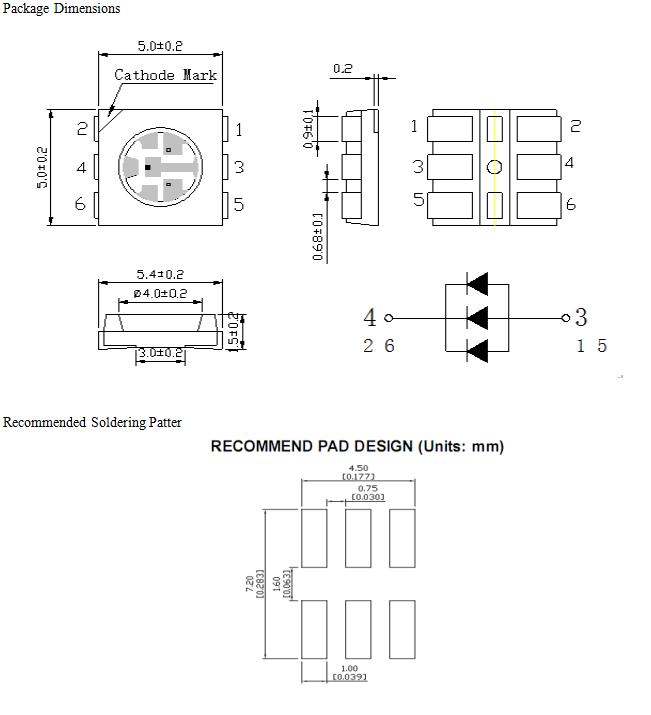

    Reel Dimensions:

    Carrier Tape Dimensions:

    Loaded quantity 1000 PCS Per reel.

    We provide EMS DHL UPS FedEx TNT that several different types of express allows you to select, under normal circumstances, the transport time is in 5 to 10 days or so, if large cargo, go shipping, so time is longer, but safer, and the freight is lower.



    • Why choose YUHANG led chip ?

    1. Well-known chip material

    2. 99.99% gold wire bonding

    3. 2 years warranty

    4. Over 10 years work experience technical service team

    5. 24 hours service Professional sales team

    6. Free Sample is available

    7. Fast delivery

    8.100% QC inspection Before Shippment

    9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.
