Safety Led Smd Diode Surface Mount 590 - 595 Nm Single Color Wide Viewing Angle

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3030Y05
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Yellow	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	10-15LM	Power:	0.5W
Viewing Angle(°):	120 Degree	Color Rendering Index:	20
Color Temperature:	590-595NM	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	150mA
Voltage:	2.0-2.4V	Warranty:	2 Years
Lifespan:	50000-100000Hours

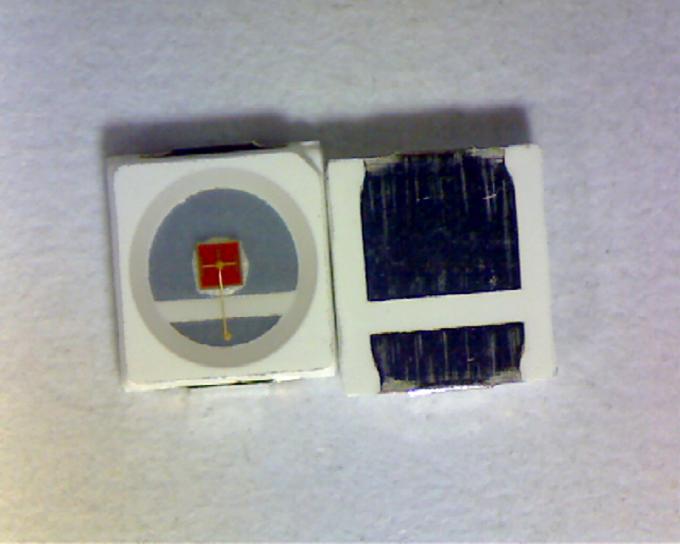

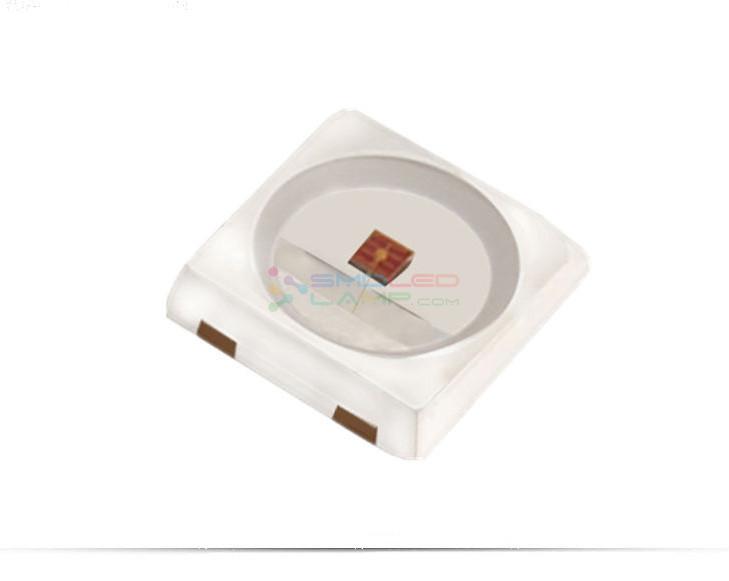

Surface Mounted Diode 3030 0.5W Yellow SMD LED with 590-595nm single color

Features:

PLCC-2 package.
White package.
Optical indicator.
Colorless clear window.
Ideal for backlight and light pipe application.
Inter reflector.
Wide viewing angle.
Suitable for automatic placement equipment.
Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
Available on tape and reel (8mm Tape).
The product itself will remain within RoHS compliant Version.

Descriptions:

The YH3030Y05 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Applications:

Automotive: Backlighting in dashboards and switches.
Telecommunication: Indicator and backlight in telephone and fax
Indicator and backlight for audio and video equipment.
Indicator and backlight in office and family equipment.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General use.

Part No.	Chip Material	Lens Color	Source Color
YH3030Y05	AlGaInP	Water Clear	Yellow

Safety Led Smd Diode Surface Mount 590 - 595 Nm Single Color Wide Viewing Angle

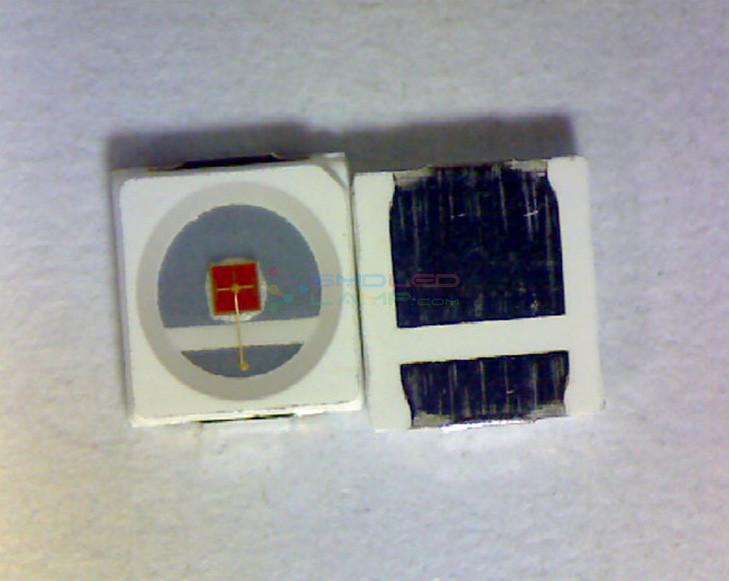

Product Description

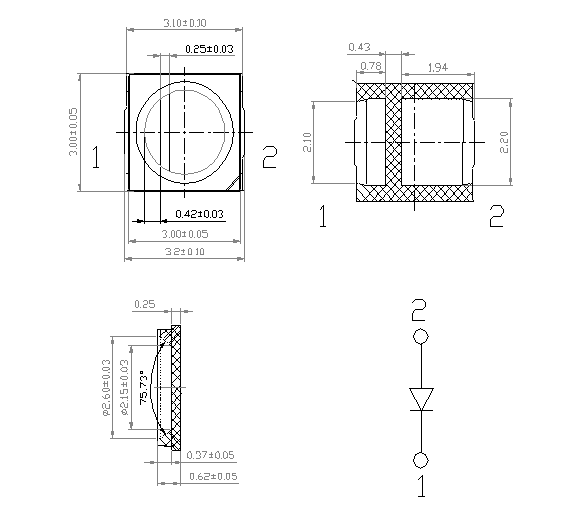

Package Dimensions

Safety Led Smd Diode Surface Mount 590 - 595 Nm Single Color Wide Viewing Angle

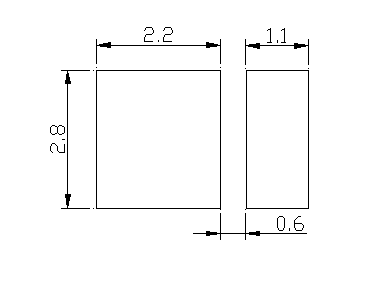

Recommended Soldering Patter

SURFACE MOUNT LED LAMPS
Product Type:YH3030Y05
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			150			mA
Reverse voltage			Vr			--			V
Power dissipation			Pd			330			MW
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			200			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	IF=150mA	CCT		Y	--		--	--		K
Forward voltage	IF=150mA	Vf		Y	2		--	2.4		V
luminous flux	IF=150mA	φ		Y	10		--	15		LM
Viewing angle at 50% IV	IF=150mA	2θ1/2		Y	--		120	--		Deg
Dominant wavelength	IF=150mA	λd		--	590		--	595		nm
Reverse current	Vr=5V	Ir		Y	--		--	--		μA
Color Rendering Index	IF=150mA	CRI		--	--		--	--		Ra

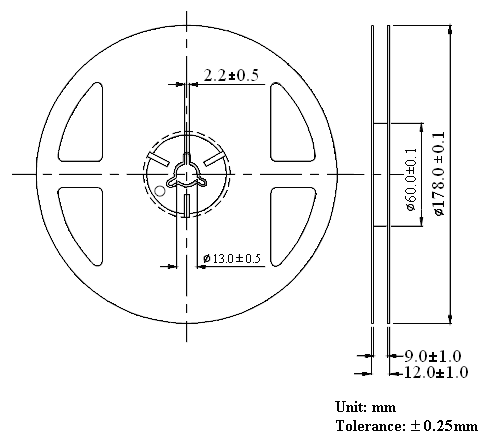

Reel Dimensions:

Carrier Tape Dimensions:
Loaded quantity 5000 PCS Per reel.

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
