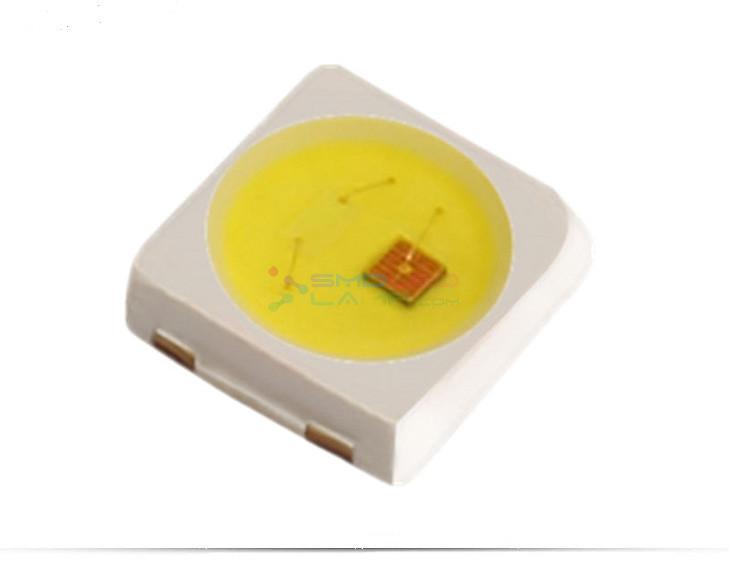

Bicolor 3030 SMD LED Yellow White Red White , High Power Led Chip White Data Sheet

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3030YW1
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description



Type:smd led Chip Material:InGaN
Emitting Color:Bi-color Yellow White Luminous Intensity:Customers' Requirements
Luminous Flux(lm):Y:10-15LM/ W:55-60LM Power:1W
Viewing Angle(°):120 Degree Color Rendering Index:20
Color Temperature:590-595NM/6000-6500K Operating Temperature:-20 - 85
Chip Brand:Epistar Chip, Sanan Chip,Epileds Chip Current:Y:150mA/W:150mA
Voltage:Y:2.0-2.4V/W:150mA Warranty:2 Years
Lifespan:50000-100000Hours

Bicolor Yellow-White Red-White High Power chip 1W 3030 SMD LED Bi-color Yellow White Data sheet



Features:

  • Package in 5k /reel.

  • Compatible with automatic placement equipment.

  • Compatible with infrared and vapor phase reflow solder process.

  • Bi-color type.

  • Colors: Super White & Yellow

  • The product itself will remain within RoHS compliant Version.



Applications:

  • Automotive: Backlighting in dashboard and switch.

  • Telecommunication: Indicator and backlighting in telephone and fax.

  • Flat backlight for LCD, switch and symbol.

  • General use.



Descriptions:

  1. The YH3030YW1 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



Applications:

Part No. Chip Material Lens Color Source Color
YH3030YW1 AlGaInP Yellow Clear white/yellow















Product Description

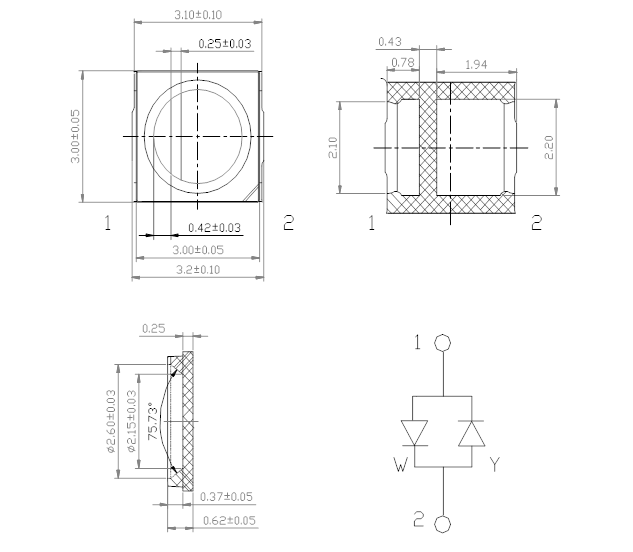

Package Dimensions

                      Bicolor 3030 SMD LED Yellow White Red White , High Power Led Chip White Data Sheet

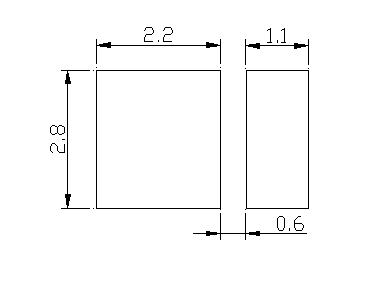

Recommended Soldering Patter

                                          Bicolor 3030 SMD LED Yellow White Red White , High Power Led Chip White Data Sheet

SURFACE MOUNT LED LAMPS
Product Type:YH3030YW
Absolute maximum ratings (Ta=25°C)
Parameter
Symbol
Value Unit
Forward current
If
300 mA
Reverse voltage Vr -- V
Power dissipation Pd 700 MW
Operating temperature range Top -25~+80 °C
Storage temperature range Tstg -30~+85 °C
Peak pulsing current(1/8 duty f=1KHz) Ifp 400 mA
Junction Temperature Tj 115 ℃/W
Electrostatic Discharge(HBM) ESD 1000 V
Electro-Optical characteristics (TA=25°C)



Parameter

Test

Condition



Symbol



Color

Value Unit
Min Typ Max



Color Temperature

IF=150mA CCT

Y

W

6000 -- 6500 K



Forward voltage

IF=150mA Vf

Y

W

2

3.0

--

2.4

3.4

V



luminous flux

IF=150mA φ

Y

W

10

55

--

15

55

LM



Viewing angle at 50% IV

IF=150mA 2θ1/2

Y

W

-- 120 -- Deg



Dominant wavelength

IF=150mA λd

Y

W

590 -- 595 nm



Reverse current

Vr=5V Ir

Y

W

-- -- -- μA



Color Rendering Index

IF=150mA CRI

Y

W

-- 80 -- Ra

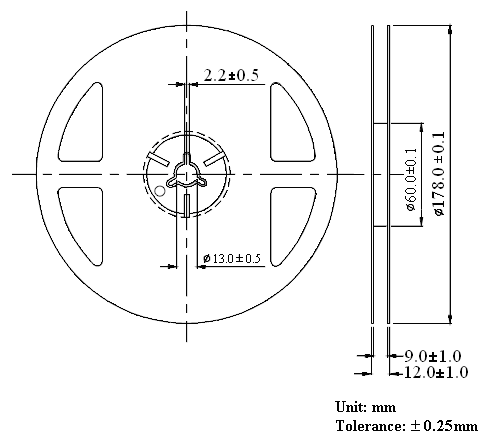

Reel Dimensions:
0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K


Carrier Tape Dimensions:
Loaded quantity 5000 PCS Per reel.



Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
